miazza

Can this modification be done also via VCDS without overcopying my database ?

Yes NOY. I installed diag 2.01 and I have internet connection. I have made a read (back-up) of my DataPST.db. Are they all three identical and I can modify only one of them ? I can send you in PM my DataPST original and the one I have modded.

Thank you NOY So a make a read of my DataPST.db and I apply all the modification you said above but: "676990753" "72057594037862404" "1" or "676990753" "72057594037862400" "1" Remember I am without SIM. About script diagnostics - diag 2.01 is this disabling the keldo MAP activation ? The install/uninstall script has done it ... Sorry for my ignorance but can I ask what this command do in the read script: rm -f $dstPath/.done is this removing any .done from root of the SD ? Shall I modify the getStatus.sh from s_site0="192.168.1.254" to s_site0="192.168.2.1" ?

NOY, in your dataPST.db the value "676990753" "72057594037862404" "1" is instead "676990753" "72057594037862400" "1" Which is the correct numebr ?

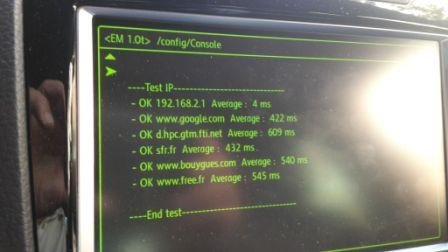

I did exactly as suggested. My IP configguration from Green menu is the following (copioed from pic): ----IP configuration---------------- [iNFO]_CS_RESOLVE: [iNFO] /etc/resolv.conf: nameserver 8.8.8.8 nameserver 8.8.4.4 ----Routing table------------------- Destination Gateway Flags default 192.168.2.1 UG 192.168.0.0/16 192.168.2.1 UG 192.168.1.1 (MAC RNS) UHL 192.168.1.110 (MAC RNS) UHL 192.168.2.1 (MAC ROUTER) UHL 239.255.255.250/32 192.168.1.1 UG I think I have internet access in RNS but Google Services are graied out ... I guess there is a special setting to be saved in the DataPST.db but this must be specific for systems without SIM (like what windstar did for his system with SIM). May be NOY knows something more on this.

Again ... yesterday I made: - uninstall --> OK - install --> OK After a few minutes again Data Base is not available contact the dealer. It was working well since few days now. For sure it is a coincidence but now I have to reinstall database again :(

Hello people. Now I am back with the MAP reinstalled but I needed to reinstall part of the FW on my RMS850 so that I lost Green menu and everything was activated with the script. I activated again Green menu with VCDS. WLAN is still active as well as all the mod done manually according to your guide. Now I do not know if DNS is still modded as per script and fo sure there is not the mod that allow to see TMC e CAR-NET menu. I think the best should be to reinstall the script but do I need to uninstall it before or can i skip ?

Just to inform you that I did exactly what I reported above (a part delete data base) and everything is now back working :). No need to run again Keldo activator (system is remembering I run it before). Thanks to everybody.

N Normally MMI3G+ has an automatic built in recovery. Try to insert a good FW into SD1 slot and reboot the system. If the problem is not too deep, you should be able to recover it with an "emergency update" that is activated automatically. If you have used a wrong FW ... than you need to connect a serial interface (look in google: recover a bricked MMI3G+).

Indeed I installed in used defined mode. The problem is that most likely, when I mede the delete database procedure, my green menu crashed and something is now corrupted. I cannot find any post dealing with similar situations and I hope you have seen something similar on your MMI3G+. Now my idea is: - reactivate Green menu (lost during FW reinstall) - try to delete database (but I am not sure I will be allowed because no data base is installed) - Try to install manually all the VW_ECE modules (only app) Is it risky for your knoledge ?

Hello frankiegom, the wifi testing will need to wait ... the set-up is ready but I need to have back my MAP database ;).

Hello Thierry-13. I update the situation. 1) nav partition deleted 2) tried to reinstall tha MAP but it allowed the reinstall only of the FW part removed by partition del. 3) reinstalled the FW and the following modules have been installed very quickly: - CombiStyles - GEMMI - MapStyles - KDPreUpdate Check After this I tried to reinstall the MAP and this time the metainfo.txt has been faster but still full of N/A in all modules except in VW_ECE where I have a "?". I entered in this module and I foud several subentry with "N": CTYS3TC_ECE (0) CTYS3TC2_ECE (0) LIT3GP_ECE (0) LIT3GP2_ECE (0) ... ... GDB_ECE Entering is each of them I can activate the install of: - Bootloader (this cannot be selected ... I tried) - Application (this can be selected) Now my idea is: - reactivate Green menu (lost during FW reinstall) - try to delete database (but I am not sure I will be allowed because no data base is installed) - Try to install manually all the VW_ECE modules (only app) Any other advise ?

So I understand it is normal to see that advice. Will the FW require reinstall for sure ? Than I have to be ready with a FW SD and MAP SD at the same time... ...did you ever do this procedure ? PS: I am writing here because RNS850 is less popular that MMI3G and I need assistance.

Salut Therri-13 ... Je suis aussi un Italien sans argent;) ... J'ai utilisé Google. Peu probable, je ne peux pas utiliser FW 900 parce que mon système est basé sur RNS850 (touareg) et je suis déjà avec la dernière FW K0821. =============== Hi Therri-13 ... I am also an Italian with no money ;) ... I used Google. Unlikely I cannot use FW 900 because my system is based on RNS850 (touareg) and I am already with latest FW K0821. I really do not know what to do...

Chers amis, je perdu ma base de données de navigation (2016) sur mon MMI 3G +. Je suis dans une situation très difficile: - Nav Databas pas présent - Si je tente de réinstaller le MAP le système reste longtemps pour lire le metainfo.txt et après qu'aucune mise à jour J'ai essayé plusieurs choses comme l'installation d'une ancienne base de données, mais même histoire. J'ai décidé de supprimer NAV parition à partir du menu vert, mais le suivant apparaît: delNavHDD.sh v2011-11-27 AVERTISSEMENT: la suppression de la partition de navigation, il faudra re-installation de la base de données et une partie du logiciel. S'il vous plaît appuyez sur le retour et faire à nouveau cet élément de menu pour confirmer Est-ce normal ? Est-ce que cela signifie que la suppression de la partition de nav Je dois aussi la SD FW? Merci d'aider un gars italien pauvres ... ======================== Dear friends, I lost my nav database (2016) on my MMI 3G+. I am in a very difficult situation: - Nav databas not present - if i try to reinstall the MAP the system remains long to read the metainfo.txt and after that no update I tried several things like the install of an older database but same story. I decided to delete NAV parition from green menu but the following appears: delNavHDD.sh v2011-11-27 WARNING: deleting the navigation partition will require re-installation of data base and part of the software. Please press return and do this menu item again to confirm Is this normal ? Does this mean that deleting the nav partition I need also the FW SD ? Thanks for assisting a poor italian guy ...

Nice windstar :) I have a friend in italy with the SIM. Could you make a summary of what you did to have it working ? PS: during week-end I do not know why but my map database in RNS850 has disappeared and Navigation no more possible ... now I need to reinstall from scretch ... I was ready to try with router ... sigh !

So , finally for RNS850 the right DHCP Server Setup is: IP Address = 192.168.2.1 netmask = 255.255.255.0 IPv4 broadcast = what ????? 192.168.2.255 ? And in DHCP-Options : 3,192.168.2.1 (all the rest remains unchanged) + "Force DHCP on this network even if another server is detected".

Just a short update of my status: - script installed - green menu modification as per guide NOW I have WLAN active and Google earth appears grayed in the MAP; is it normal ? Still I have not configured the router ... I do not have a lot of time.

Finally I could not resist and asked my brother to run the script: 20160620_075048 - step 1 start at 20160620_075048 20160620_075052 - step 2 Display picture start 20160620_075052 - step 3 Success mmelauncher.cfg backuped on mmi 20160620_075052 - step 4 Success mmelauncher.cfg backuped on SDCARD 20160620_075052 - step 5 Success mmelauncher.cfg deleted 20160620_075052 - step 6 Success new mmelauncher.cfg copied from SDCARD to mmi 20160620_075053 - step 7 Success mme-becker.sh copied from SDCARD to mmi 20160620_075053 - step 8 Success mode changed mme-becker.sh to make it executable 20160620_075053 - step 9 Success resolv.conf copied from SDCARD to mmi 20160620_075053 - step 11 Success nws.cfg backuped on MMI 20160620_075053 - step 12 Success nws.cfg backuped on SDCARD 20160620_075053 - step 13 Success nws.cfg deleted 20160620_075053 - step 14 Success new nws.cfg copied from SDCARD to mmi 20160620_075053 - step 15 Success pf.conf backuped on MMI 20160620_075053 - step 16 Success pf.conf backuped on SDCARD 20160620_075053 - step 17 Success pf.conf deleted 20160620_075053 - step 18 Success new pf.conf copied from SDCARD to mmi 20160620_075056 - step 19 Success new sqlite.xml copied from SDCARD to mmi 20160620_075056 - step 20 Success Launch installFairMode.sh script 20160620_075107 - step 21 Success Display picture Done 20160620_075107 - step 22 Success Installation terminated In the sqlite.xml I have seen the followings: 1) KEY:45056 value 1 --> What is this for ? What was default value ? 2) KEY 40960 value 32783 --> What is this for ? What was default value ? 3) KEY 4100 value 1 --> This I understood is for green manu activation and it worked well (after FW update green menu was gone) For Activation Traffic Online do I have also to: VCDS 5F Infotainment Adaptation Chanel 69 existing value plus 32768 ?

Hi all. Sorry for not being present in the discussion. I am abroad and for the time baing I can only study ... no access to my Touareg :(. I have checked the link for Router OpenWRT FW but it is not clear which is the latest: For 3020 it seems V1: ofmodemsandmen.com/download/GoldenOrb/mr3020-v1-GO2016-04-01.zip. Correct ? I will correct the pdf by hands in order to include all the suggestion in the latest posts. Thanks.

Hello Windstar. I see you have reached a good point anyway. I have a RNS850 without SIM. I just received my TPLink MR3020 router. Could you make a summary of what you have done so far and possibly attach any script you have used or modified ? I am not very expert in linux but possibly I can test them on my car.

Thanks for your reply. Of course this is not the right discussion where discuss this stuff and I will stop here of course (but I will continue to follow your progress :)) I can tell you that all the tricks of Audi MMI3G+ works also on my Touareg RNS850. Green menu and VCDS tricks are exactly the same and also I installed the last Audi 2016 MAP on it (using the Audi script with MAC address trick). Thanks again. Ciao

Hello, this is my first post on this forum and therefore I really would like to send a big hello to everybody. I apoligise for using the english language :I can understand 60% of french but I cannot write it (I'm Italian). I subscribed because this discussion is very interesting and I would like to apply. I have read the whole discussion and my first question is ... I have a Touareg with RNS 850 system (basically it should be the same of Aidi MMI 3G+). I do not have AMI connector so I am interested in the wifi solution. Do you think there is any specific mod on script to be applied for RNS850 ? The only people talking about this on VW are from russia , they are very polite but the language is really a problem even with google translator. In the discussion I have understood that I can have access via telnet to my RNS by using a script: Is this script simply enabling SSH and shall be launched at any RNS reboot ? Thanks for your assistance.
